Hydrochemistry of the Mocorito river coastal aquifer, Sinaloa, Mexico: water quality assessment for human consumption and agriculture suitability

José R. Rivera-Hernández1; Carlos Green-Ruiz2; Lawren Pelling-Salazar1; Alejandra Trejo-Alduenda1

1. Posgrado en Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México. Av. Joel Montes Camarena s/n, Col. Playa Sur, Mazatlán, Sin., 82040. México, Universidad Nacional Autónoma de México, Posgrado en Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México, Mazatlán Sin , Mexico , 2. Unidad Académica Mazatlán, Instituto de Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México. Av. Joel Montes Camarena s/n, Col. Playa Sur, Mazatlán, Sin., 82040. México. cgreen@ola.icmyl.unam.mx, Universidad Nacional Autónoma de México, Unidad Académica Mazatlán, Instituto de Ciencias del Mar y Limnología, Universidad Nacional Autónoma de México, Mazatlán Sin , Mexico, E-mail:



Abstract

Background:

Groundwater is a vital source of water for domestic and agricultural activities and the water of the Mocorito River Coastal Aquifer (MORCA), located in the agricultural valley of Culiacan, Sinaloa, Mexico, is not an exception.

Goals:

To assess MORCA's groundwater quality for drinking and irrigation purposes and the geochemical processes affecting its composition.

Methods:

Twenty-two well samples were collected during the dry and rainy seasons. Physical and che mical parameters, major ions, drinking quality (WQI and PHASECH water quality index), and irrigation suitability Richards (1954) and Wilcox diagrams) were studied.

Results:

Total Dissolved Solid (TDS) ranged from 1688 - 8762 mg L-1 for the dry season and 89-10016 mg L-1 for the rainy season. From inland to the coastal zone, MORCA's groundwater was considered hard and very hard, with non-dominant hydrochemical facies in the dry season and calcium, magnesium and sodium (cationic), and bicarbonate and chloride (anionic) types, in the rainy season. US Salinity Staff and Wilcox diagrams revealed that MORCA's groundwater is not suitable for use in irrigation. Further, the geochemical processes controlling the chemical composition of MORCA were evaporation and weathering.

Conclusions:

According to the TDS and water quality index (WQI and PHASECH) classifying just 4.5 % and over 50 % of the samples, respectively, MORCA water can be consi dered suitable for human consumption; only the groundwater from site EE-1, in the rainy season, was considered suitable for human consumption. US Salinity staff and Wilcox diagrams indicate that almost 50% of MORCA's groundwater is not suitable for irrigation use. MORCA's groundwater composition is dominated by evaporation and weathering of minerals such as anorthite, illite, and kaolinite.

Received: 2015 July 13; Accepted: 2017 February 15

hbio. 2017 ; 27(1)

Keywords: Key words: Geochemical processes, hydrochemical facies, major ions, Piper diagram.
Keywords: Palabras clave: Diagrama de Piper, faces hidroquímicas, iones mayoritarios, procesos geoquímicos.

INTRODUCTION

Groundwater is the major source of water supply around the world and is mainly employed for domestic, agricultural, and industrial activities. Groundwater chemistry determines its quality and therefore its proper use. It is influenced by natural factors such as climatic conditions, rain and surficial water percolation, recharge water quality, regional geo logy, sub-surficial geochemical processes, as well as discharges, lea ching and organic matter addition from anthropogenic activities carried out over the aquifer, extraction, and irrigation practices (Brindha & Elan go, 2011; Davraz & Özdemir, 2013).

In some places, groundwater is vital for human consumption and biota, thus continuous quality monitoring is crucial since irrigation with poor quality groundwater could threaten the health of all consumers and inhibit the growth and quality of crops. The hydrogeochemical stu dy of groundwater is essential to understand the origin and evolution of its chemical composition and hence its quality. There is an extensive literature on groundwater quality assessment for human consumption and agricultural uses (Onwuka et al., 2013; Murkute, 2014; Dar et al., 2014; Krishna-Kumar et al., 2014), based on conventional techniques such as the Piper (1953) and Gibbs (1970) diagrams in order to identify hydrochemical facies and geochemical processes. There are also qua lity indices like WQI (Vasanthavigar et al., 2010; Krishna-Kumar et al., 2014) and PHASECH (Peinado-Guevara et al., 2011); Richards (1954) and Wilcox (1948) diagrams for assessment of agricultural suitability. All of them take into account groundwater chemical composition (e.g., major ions, total dissolved solids, pH and conductivity). There are no studies on groundwater quality assessment in the MORCA area. Howe ver, Peinado-Guevara et al. (2011) studied the Sinaloa River coastal aquifer (SIRCA), the northern neighbor basin (between 25° 16´ 38” and 25° 41´ 13” N and from 108° 25´ 02” to 108° 41´ 22” Wt), and conclu ded that the SIRCA is highly sensitive to salinization due to its coastal condition, with a latent threat of saltwater intrusion during droughts, as well as the occurrence of evaporitic rocks away from the coast line.

MATERIALS AND METHODS

Study area. The Mocorito River Coastal Aquifer (MORCA), with an area of 1180 km2, lies between 24° 56’ 17’’ N and 25° 47’ 26’’ N, and 107° 38’ 07’’ and 108° 23’ 35’’ W (Fig. 1.), in the central portion of the state of Sinaloa, Mexico, adjacent to important cities. It is an unconfined aquifer with fluvial and alluvial sediments (Cretaceous to Tertiary) lying on a consolidated conglomerate of low permeability, which in turn overlies volcanogenic materials (acid igneous rocks with the presence of Au, Ag, Cu, Pb and Fe) (Anonymous, 1978). MORCA´s recharge is approximately 208 x 106 m3/year (Comisión Nacional del Agua, 2009a). The Mocorito River basin (180 km in length) has its origin in the town of Terrero (Ce rro San Pedro-Sierra Madre Occidental), at 1950 m AMSL, and its river mouth is on the Santa María La Reforma coastal lagoon, Playa Colorada bay (INEGI, 1995).

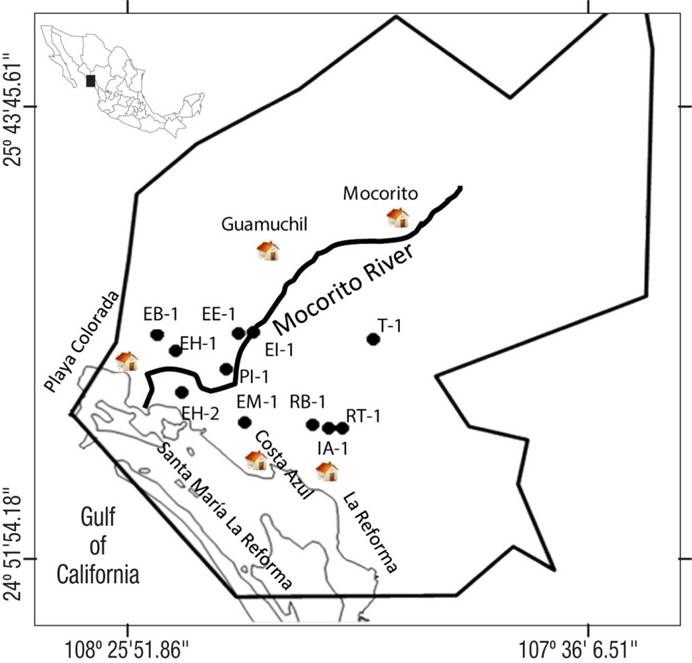

[Figure ID: f1] Figure 1.

Location of the Mocorito River coastal aquifer area (Sinaloa, Mexico) and sampling stations.


The Culiacan Valley, where the MORCA is located, is the most im portant agricultural region in Sinaloa, with intensive agriculture activi ty (193,481 ha irrigated and 184,547 ha rain-fed) (Páez-Osuna et al., 2007), growing vegetables such as corn, tomatoes, chili, and sorghum. Thus the main use for MORCA's groundwater, mainly in the dry season, is for irrigation; however, during drastic climatic events like drought or hurricanes, some communities employ groundwater for their drinking water consumption.

According to the Köppen Climate Classification System, modified by García (1964), the MORCA area has a warm, very dry climate, with an average annual temperature of 22 °C, and the rainy season occurs during summer (BW (h ‘) W (e’)). The precipitation on the MORCA region was 846.7 mm in 2013; however, significant variations were observed between both dry (0.1 and 0.2 mm in March and April, respectively) and rainy (169.4, 197.2 and 298.6 mm in July, August, and September) seasons (CONAGUA, 2014).

The main objective of this study was to evaluate the groundwater quality for both human consumption and agricultural suitability of the Mocorito River Coastal Aquifer in two different climatic seasons, using hydro-geochemical tools. Groundwater in this region is employed for irrigation and drinking water.

Sampling. Using a Bailer sampler, groundwater samples were collec ted from a network of 22 coastal wells (on average, the water table was 7 m below ground level) in two different climatic seasons, i.e., April (dry) and July (rainy) 2013 (Fig. 1). All the groundwater samples were collected 1 m below the water table. Sampling wells were selected based on the National Water Commission (CONAGUA, for its acronym in Spanish) (CONAGUA) well network. In addition, depending on their accessibility, we also took samples on private property, in houses and agriculture fields. Samples were collected in 60 mL high-density polye thylene (HDPE) bottles for chemical elements (cations and anions) and stored at 4 °C until they could be chemically analyzed in the laboratory. Auxiliary environmental parameters (pH, temperature, total dissolved solids (TDS), and Electrical conductivity (CE)) were measured in situ with previously calibrated potentiometers (HANNA models HI98127 and HI98130). Cation and anion concentrations were volumetrically (Ca2+, Cl-, CO3 2-, HCO3 -), gravimetrically (Mg2+, SO4 2-) with drying of residue, and flamometrically (Na+ y K+) defined in the Water, Soil and Plant Analysis Laboratory of the Irrigation District 010 Culiacán-Humaya of CONAGUA, a federal agency. Procedures were based on the soil and water analysis manual from the Agriculture and Hydric Resources Ministry of Mexico (Secretaría de Agricultura y Recursos Hidráulicos, 1974). Quality assessment for cations and anions concentrations was carried out according to the following ionic balance error expression proposed by Cabrera-Sansores et al. (2002):

% Error = (Σcationes - Σaniones) / (Σcationes + Σaniones) * 100 (1)

where % Error must be less than 10 %.

Total dissolved solids (TDS) content, soluble sodium percentage (% Na+), the sodium-adsorption-ratio (SAR), and total hardness (TH) were determined following the equations:

TDS = EC / 1.65 in mhos/cm (2)

TH = 2.497 Ca2+ + 4.115 Mg2+ (3)

% Na+ = Na+ + K+ x 100 / Ca2+ + Mg2+ + Na+ + K+ (4)

SAR = Na+ / √ (Ca2+ + Mg2+) / 2 (5)

where all ionic concentrations are expressed in meq/L for ecs. (3), (4), and (5).

Equation (2) was described by Peinado-Guevara et al. (2011) from a database compiled during more than 20 years, which takes into ac count the electrical conductivity (EC) of each sample. Equations 3, 4, and 5 were used by Vasanthavigar et al. (2010).

Once all the values were obtained, hydrochemical facies and the geochemical processes involved were identified using the Piper (1953) and Gibbs (1970) diagrams. Quality of drinking water was evaluated using two indices, WQI (Vasanthavigar et al., 2010; Krishna-kumar et al., 2014) and PHASECH (Peinado-Guevara et al., 2011). Agriculture sui tability was evaluated with the diagrams proposed by Richards (1954) and Wilcox (1948).

RESULTS

Results of laboratory and in situ measurements, data of environmental and hydrochemical parameters, TDS, and secondary parameters (% Na+, SAR and TH) are reported in Table 1. Overall, pH values were within an acceptable range that is suitable for human consumption (Secretaría de Salud, 2000), i.e., 6.8 and 8.4, averaging 7.6, during the dry season and 7.3 to 8.5, averaging 7.9 during the rainy season. The temperature of MORCA´s groundwater averaged 26.6 and 28.3 °C in dry and rainy seasons, respectively. Likewise, EC high values were measured in both climatic seasons; they oscillated between 1,023 and 5,310 μS cm-1, averaging 2,223 μS cm-1 in the dry season; and from 54 to 6,070 μS cm-1, with an average of 2,343 μS cm-1 in the rainy season. TDS values (Table 1) during the dry season (1,688-8,761.5 mg L-1) were higher than those in the rainy season (89-10,015.5 mg L-1). Total hardness (TH) values were found between 180 to 2,001 mg L-1 in the dry season and 25 to 1,750 mg L-1 in the rainy season.

Table 1.

Environmental and physicochemical parameters of groundwater samples from the Mocorito River coastal aquifer (MORCA), Sinaloa, Mexico. Units: Major ions (meq/L), T = temperature (°C), S = salinity (‰), EC (μS/cm), TDS (mg/L), TH (mg/L), SAR (Sodium-Adsorption-Ratio, no units), and %Na (%).



The concentrations of Ca2+ ranged between 2.3-20.8 meq L-1 in the dry season and 0.3-7.3 meq L-1 in the rainy season. Mg2+ fell below 19.2 meq L-1, with a minimum of 0.5 meq L-1 in the dry season and 31.9 and 0.2 meq L-1 in rainy season. Na+ varied from 2.7 to 14.7 meq L-1 in the dry season and from not detectable to 34.4 meq L-1 in the rainy season. Anions had a lower content, except the case of Cl-, which had a minimum of 0.8 meq L-1, with a maximum of 34 meq L-1 in the dry season, and a minimum of 0.1 meq L-1 and a maximum of 35 meq L-1 in the rainy season.

DISCUSSION

Groundwater chemistry. A wider variation of EC was found in the rainy season, which can be related with dilution and/or differential rock-water interactions during water infiltration from the surface to the aquifer. According to Sánchez-Pérez and Trémolières (2003), Choi et al. (2005), and Murkute (2014), groundwater with high EC and large varia tions of this parameter are attributed to an ion exchange and solubili zation processes within the aquifers (geochemical processes through water-rock interaction), as well as anthropogenic activities in aquifers. Peinado et al. (2011) have registered the occurrence of salt domes or lenses in the region. This kind of geological bodies can also produce the high EC values, especially in sites far from the coastline. In accordance with the irrigation water EC classification proposed by Richards (1954), on average, MORCA groundwater was classified as having very high salinity (2,250-5,000 μS cm-1).

Krishna-Kumar et al. (2014) suggested that waters with low TDS (373-895 mg L-1) are influenced by rock-water interaction related to recharge, while waters with high TDS (959-4,669 mg L-1) are influenced by anthropogenic sources. A classification of the type of groundwater based on TDS content (Heath, 1983) is shown in Table 2. Most of the samples from both seasons can be classified as slightly to moderately saline, except for one sample (EI-1) took during the rainy season, which was classified as highly saline, and another (EE-1) from the same period that was classified as freshwater. According to the desirable maximal value of TDS suggested by the World Health Organization (WHO 2006; 500 mg L-1) and NOM-127-SSAI-1994 (Secretaria de Salud, 2000; 1,000 mg L-1), only 4.5 % of the samples (site EE-1) during both sea sons are considered suitable for human consumption.

Table 2.

Mocorito River coastal aquifer groundwater classification based on TDS content (Classification suggested by Heath, 1983).


TFN1 Fresh= (0-1000), Slightly saline=(1000-3000), Moderately saline = (3000-10000), Highly saline= (10000-35000), Briny= (>35000 (mg L-1).


Following Sawyer & McCarty’s classification (1967), all samples co llected in the dry season are hard to very hard, while of those collected in the rainy season, 9 % are soft, 9 % are moderately hard, 18 % are hard, and 64 % are very hard (Table 3). Significant differences were not found for any of the aforementioned parameters in either climatic season. The World Health Organization (WHO 2006) and NOM-127-SSAI-1994 (Secretaria de Salud, 2000) indicate that the maximal value of TH tolerated by human beings is 500 mg L-1. In this regard, most of the MORCA samples showed a good degree of hardness (< 500 mg L-1), except for the EH-2, EI-1, RT-1, and T-1 sites (> 500 mg L-1) in both seasons.

Table 3.

Mocorito River coastal aquifer groundwater classification based on total hardness (TH). (Classification suggested by Sawyer and McCarty, 1967).



On average, the ionic order observed was Cl- > Na+ > Mg2+ > Ca2+ > SO42- > HCO3 - > CO3 2- and Na+ > Cl- > Mg2+ > SO4 2- > HCO3 - > Ca2+ > CO3 2- for dry and rainy seasons, respectively. A special concern involved the low observed SO4 2- concentrations (Table 1) in all samples (max= 22.7 mg/L, in well EI-1), which may indicate reduction processes occurring in the system that produce sulfide minerals precipitates. Unfortunately, tests for NO3, NO2, and oxidation-reduction potential, some trace elements, and microbiological composition, which might serve as proxies for specifying the oxidation-reduction condition of water, were not carried out.

Hydrochemical facies and geochemical processes involved. The triangular Piper´s diagram is commonly used in water chemistry studies to show the percentage of ionic composition and to identify water types. The study area showed significant variations in the concentrations of cationic and anionic composition (Figure 2). Na+ and Mg2+ dominated over Ca2+; while prevalence of HCO3 - and Cl- was evident in the anionic group. Most of MORCA´s groundwater in the dry season fell within the area of non-dominant type B; however, a few samples can be classified as sodium (cation triangle) and bicarbonate and chloride (anion triangle) types. During the rainy season, groundwater can be classified as calcium, magnesium, and sodium cationic types, and as bicarbonate and chloride anionic types (Fig. 2). Similar results were recorded by CONAGUA (2009a y b), which noted that groundwater from the MORCA belongs to the sodium, calcium, and bicarbonate types (Na-Ca-HCO3).

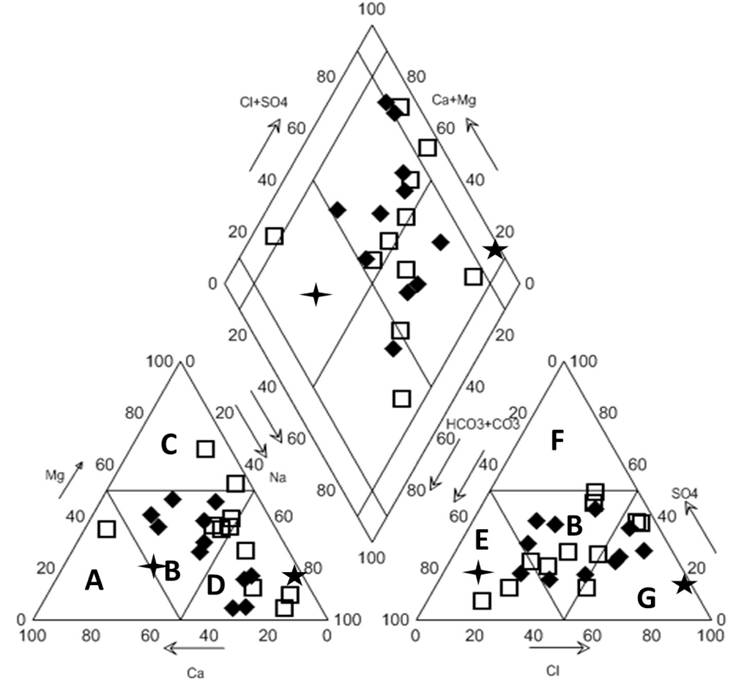

[Figure ID: f2] Figure 2.

Piper-Hill-Langelier diagram for groundwater samples from the Mocorito River coastal aquife (Sinaloa Mexico) taken in dry ( ) and rainy season ( ). A = Calcium Type, B = no dominant type, C = Magnesium type, D = Sodium and potassium type, E = Bicarbonate type, F = Sulfate type and G = Chloride type. Typical seawater ( ) and groundwater ( ). Data were also plotted as references (Millero & Sohn, 1992).


A dominance of Na was found in the EH-2, EB-1, EE-1, EI-1, RT-1, and T-1 wells, attributable to the occurrence of salt domes or lenses in the region (Peinado-Guevara et al., 2011), as well as the coastal condition of the study area, with a possible saline intrusion from the shore. In fact, Mtoni et al. (2012) indicated that water Cl- and Na+-Cl- chemical types are due to a saline intrusion process caused by stronger interaction between fresh water and seawater in many coastal aquifers, such as MORCA. Since chloride is a dominant anion in seawater and bicarbonate in groundwater, they can be used as end-members of these two water types and can indicate salt-water intrusion (Jamshidzadeh & Mirbagheri, 2011). Figure 3 shows the Cl- versus HCO3 - plots for both climatic seasons. A line with a slope of 2.8 was drawn on the plots to represent the threshold for this process (Raghunath, 1990). For both seasons, Cl- concentration in samples El-1 and T-1 were markedly more than 2.8 times higher than HCO3 - concentration, probably due to Cl- ex ternal sources. The sites where these samples were collected are the farthest wells from the seacoast and no evidence of salt-water intrusion was observed in the coastal wells. According to Peinado-Guevara et al. (2011), low-quality water in terms of its salt content was observed in the Sinaloa River coastal aquifer (SIRCA), sufficiently away from the coastline due to occurrence of Pleistocene saline lenses.

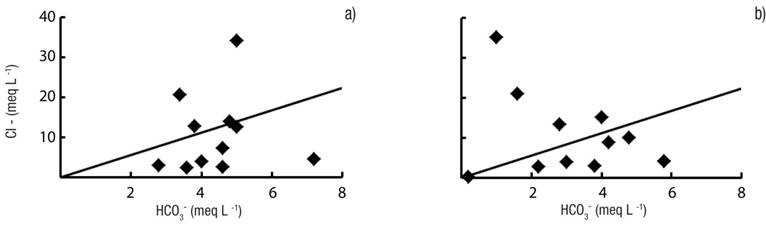

[Figure ID: f3] Figures 3a-b.

Chlorine versus bicarbonate content in groundwater samples from the Mocorito River coastal aquifer (Sinaloa, Mexico). a) Dry season. b) Rainy season.


We used a Gibbs diagram (1970) in order to understand the geoche mical processes (precipitation, rock-interaction, and evaporation domi nance) that affect the chemical composition (source of dissolved che micals) of the MORCA's groundwater. According to this diagram (Fig. 4), the chemical composition of MORCA's groundwater is controlled by processes of evaporation and weathering in both climatic seasons. Si milar results have been observed in different studies (Drago & Quiros, 1996; Subba-Rao, 2006; Peinado-Guevara et al., 2011; Murkute, 2014; Krishna-Kumar et al., 2014), that state that the prevalence of evaporation processes is related to the climate conditions of the region. in semi-dry regions, such as the one where MORCA is located, these climate con ditions increase the evaporation rate, raising Na+, Cl- and TDS contents and, therefore, salinity, such as the waters we studied herein. Likewise, these authors indicate that the dominance of a weathering process is due to water percolating into the subsoil, as well as the lack of good drainage conditions and long residence time of the groundwater that increase rock-water interaction, releasing different ions into the water. Moulla et al. (2013) studied the hydro-geochemistry of the Wadi Nador alluvial aquifer in the Western Algiers Coastal Area. They plotted the Na+/Cl- ratio vs Cl - concentration and observed two trends; one was related to matrix dissolution, where the ratio variability seems to be independent of chlorinity, and the other, where the ratio increased with chlorine, sugges ting marine intrusion. Data from our study were also plotted (Fig. 5) and a matrix dissolution trend was observed, with Na+/Cl- ratio independent of Cl- concentration.

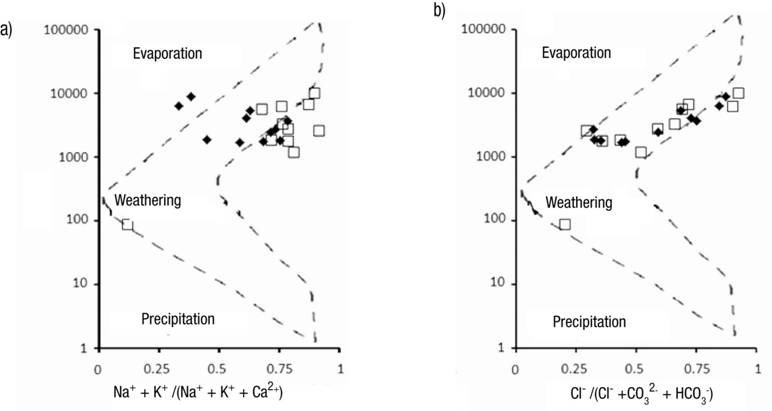

[Figure ID: f4] Figures 4a-b.

Mechanism affecting the chemical composition of the groundwater samples from the Mocorito River coastal aquifer (Sinaloa, Mexico) in Dry season ( ) and Rainy season ( ). TDS vs a= cation and b) anions contens (Classification suggested by Gibbs, 1970).

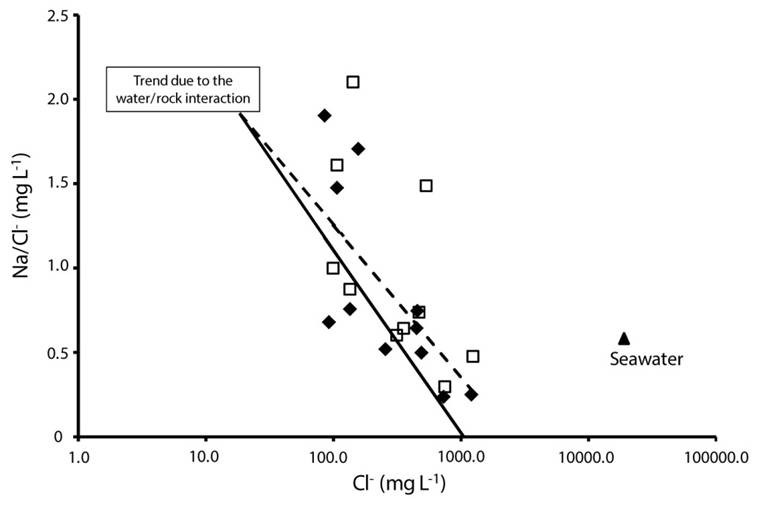

[Figure ID: f5] Figure 5.

Na+/Cl- vs Cl- content plots for dry ( ) and rainy season ( ) in samples from the Mocorito River coastal aquifer (Sinaloa, Mexico). Seawater data were taken from Millero & Sohn (1992).


Water quality for human consumption. Groundwater chemistry has been used as a tool to evaluate water quality for human consumption and agriculture suitability (Subba-Rao, 2006; Vasanthavigar et al., 2010; Krishna-Kumar et al., 2014). For human consumption, two water quality indices were used in this study: (1) WQI proposed by Kishna-Kumar et al. (2014) and, (2) PHASECH, developed by Peinado-Guevara et al. (2011). Both indices take into account the standard values of se veral key parameters of groundwater chemistry established by the WHO (2006).

To calculate the WQI, weights (from 1 to 5) were assigned accor ding to the relative importance of each physicochemical parameter in water quality as suggested by Vasanthavigar et al. (2010) and Krishna-Kumar et al. (2014): TDS = 5; pH, EC, and SO4 2- = 4; HCO3 - and Cl- = 3; Ca2+ and Na+ = 2; Mg2+ = 1. The relative weights were calculated with the following equation:

Wi = wi / Σn i=1 wi (6)

where W i is the relative weight and wi is the weight of each parameter. The quality rating of each parameter (q i ) was calculated by dividing its concentration in a groundwater sample ( Ci ) by its respective standard value (S i ) and multiplying by 100:

qi = (C i / S i ) x 100 (7)

After that, the quality sub-index (SI i ) was computed for each ith parameter:

SLi = W i x q i (8)

Finally, WQI is determined for each groundwater sample:

WQI = Σ SL i (9)

Water quality classification ranges and types of water based on WQI values suggested by Vasanthavigar et al. (2010) and Krishna-Kumar et al. (2014) are shown in Table 4. According to this classification, most of the MORCA's groundwater is of poor quality, with samples from both climatic seasons falling in the range of poor quality to water unsuitable for drinking purposes; except for samples EB-1 and EE-1 in the rainy season, which were classified as good and excellent water, respectively (Table 5). Onwuka et al. (2013) attributed the contamination of ground water during the dry season to ion leaching and lower groundwater flow; in the rainy season, water table on the aquifers become shallower, allowing infiltration and percolation of surficial runoff loaded with mu nicipal and agricultural wastewater, which can alter the quality of the receiving water body.

Table 4.

Classification of water type suggested by Vasanthavigar et al. (2010).



Table 5.

Water quality index (WQI) classification for individual water samples from the Mocorito River coastal aquifer (Sinaloa, Mexico).



Moreover, the PHASECH index suggested by Peinado-Guevara et al. (2010) considers only five parameters (pH, TH, Na+, Cl- and TDS), assig ning a value of 1 to those parameters that fulfill the World Health Or ganization quality guideline. The higher the PHASECH value, the better the water quality in terms of the evaluated parameters. The PHASECH values obtained after comparing the values of each parameter measu red against the WHO guideline are shown in Table 6. Like the WQI, in terms of the PHASECH index, over 50% of MORCA groundwater sam ples can be classified as low to intermediate quality water; while only a few samples had high quality (fulfilled with more than 4 parameters).

Table 6.

Mocorito River coastal aquifer (Sinaloa, Mexico) water quality index (PHASECH) classification


TFN2√ Under the standard; • Over the standard; *Peinado-Guevara et al. (2011).


According to Paez-Osuna et al. (2007), there are 169,232 inha bitants in the study area, with only 40,945 living in Angostura county, where most of the water samples for this study were collected (Instituto Nacional de Estadística y Geografía, 2010). Some of the sampled wells were located inside private houses, where, because of hurricanes and droughts, their owners, as well as the Angostura County Union for Pota ble Water and Sewage Pipeline System (JUMAPAANG), use groundwater to supply the entire community and cover almost all of human needs for domestic and drinking consumption. Given this use of groundwater, assessing water quality is very important.

For drinking water, several researches have studied groundwater quality (Vasanthavigar, 2010; Nagarajan, 2010; Murkute, 2014; Varol & Davraz, 2015). In their investigation of water quality in the Tefenni aquifer plain, Turkey, Varol and Davraz (2015) employed WQI and multi variate analysis and showed that close to 90% of the 52 sampled wells had excellent quality, suitable for human drinking water in both climatic seasons (dry and wet). These authors concluded that the groundwater chemistry of the Tefenni aquifer is affected by two factors: 1) water-rock interaction; and 2) agricultural activities in the area. On the other hand, in Mexico, Peinado-Guevara et al. (2011) studied the quality and suita bility of SIRCA water for agricultural and domestic use found that the sites with better quality, in terms of the PHASECH index, were located close to the banks of the Sinaloa River, but tended to decrease in quality the closer to the coastline they were. They explained this behavior due to the presence of evaporitic bodies and to the potential effect of the saline intrusion from the seawater. Our study was carried out in the more coastal portion of the MORCA, where the effects of saline intrusion or intensive agriculture can be the main factors affecting water quality.

Water quality for irrigation uses. The assessment of groundwater quality for irrigation purposes was based on the estimation of two secondary parameters: sodium absorption ratio (SAR) and soluble so dium percentage (%Na+), as well as EC values, which are related to the amount of soluble salts in irrigation water. According to Khodapanah et al. (2009) and Onwuka et al. (2013), reduction in water uptake by plant roots may be due to an increase in the osmotic pressure of the soil, which is due to an excess of dissolved solids in the water.

Sodium Absorption Ratio (SAR), %Na and EC values for MORCA´s groundwater samples are shown in Table 1. SAR oscillated between 1.3 and 7.4, with an average of 4.0 for the dry season and from 0.1 to 18.4, with an average of 5.7 in the rainy season. Similar results were recor ded by Vasanthavigar et al. (2010), who indicated that groundwater with SAR > 2 is unsuitable for irrigation. A higher average of %Na+ was found in the rainy season (50.3%) than in the dry season (45.2%). The variation in %Na+ between both periods may be due to the residence time of water in the aquifer and the dissolution of minerals from the lithological composition.

Richards (1954) and Wilcox (1948) diagrams were applied to as sess water quality for irrigation (Fig. 6 and 7, respectively). Richards (1954) plots the EC values on the “X” axis, which are classified based on salinity (alkali) hazards as follows: low (C1), medium (C2), high (C3), and very high (C4); the SAR values are placed on the “Y” axis and are classified as low (S1), medium (S2), high (S3), and very high sodium hazards (S4). On the other hand, the Wilcox diagram is obtained by plotting the EC values on the “X” axis and %Na+ values on the “Y” axis. This diagram classified water from unsuitable to excellent for irrigation.

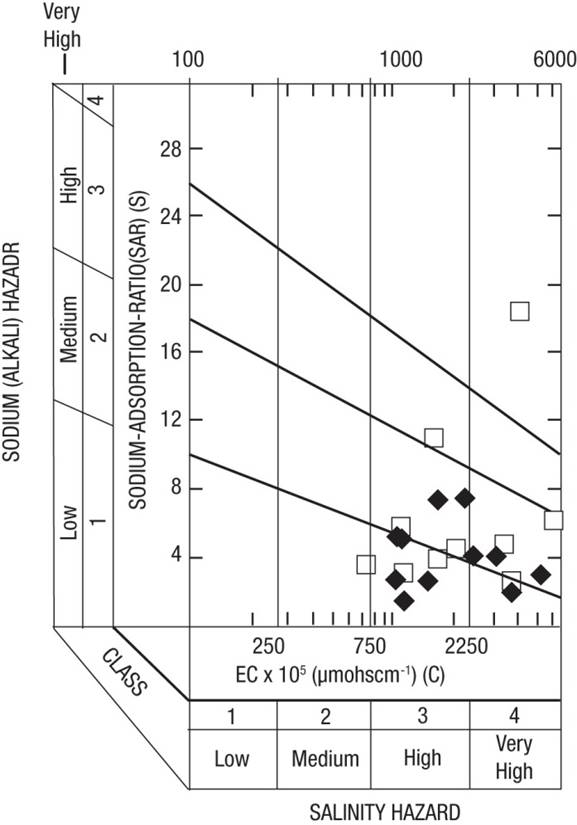

[Figure ID: f6] Figure 6.

US salinity diagram for classification of the groundwater samples from the Mocorito River coastal aquifer (Sinaloa, Mexico) ( = Dry season; = Rainy season).

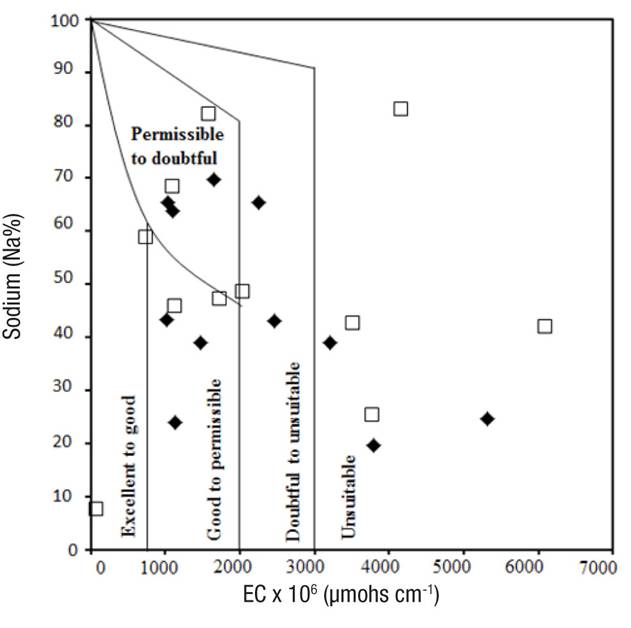

[Figure ID: f7] Figure 7.

Wilcox diagram for classification of the groundwater samples from the Mocorito River coastal aquifer (Sinaloa, México) for irrigation uses ( = Dry season; = Rainy season).


In general, groundwater samples from MORCA have combinations of high (C3) to very high salinity risk (C4) and a low (S1) to medium sodium risk (S2) for both climatic seasons; except for two samples from the rainy season that are classified as C3 - S3 and C4 - S4 (Fig. 6). This means that most MORCA's water cannot be used for irrigation in agri cultural soils with restricted drainage. For agriculture to be profitable in this region, the soil must have a coarse texture or be organic, with high permeability to allow leachate of irrigation water, with crops and plants appropriately selected for high salinity tolerance (Richards 1954; Wilcox 1955; Ackah et al. 2011).

To confirm the above, a Wilcox diagram (Fig. 7) revealed that only 5% of the groundwater samples (for both seasons) fell in the excellent to good classification for irrigation, 23 % were classified as good to per missible for irrigation, 27 % were permissible to doubtful water, and the remaining 45 % were classified as doubtful to unsuitable for irrigation.

Paez-Osuna et al. (2007) reported that 378,028 ha of agricultural fields lie on the MORCA, a part of the Santa Maria La Reforma Coastal Lagoon sub-basin. About 193,481 ha are used for agricultural irrigation; seasonal agriculture occurs on the remaining 184,547 ha. The extrac tion of groundwater from the MORCA becomes necessary during severe droughts.

Peinado-Guevara et al. (2011) studied the Sinaloa River aquifer, which is adjacent to the northern portion of MORCA, and observed that almost 35% of their groundwater samples fell inside the C3 (high salini ty hazard) - S1 (low sodium hazard) zone in the US Salinity diagram, su ggesting that they are suitable for irrigation. In addition, these authors observed that 52% of the evaluated water samples were classified as unsuitable for irrigation according to the Wilcox diagram (EC > 3000 µS cm-1). Water with low SAR but high EC can be used for irrigation only where fields have efficient drainage.

Nagarajan et al. (2010) state that the concentration of sodium in irrigation water is very important, because a high Na+ concentration has the ability to increase the exchange of this ion with the soil and affect its permeability. These authors also indicate that a high combination of Na+ and CO32- in the water leads to the formation of alkaline soils, while a high combination of Na+ and Cl- leads to the formation of saline soils. These two types of soils prevent normal plant growth.

They conclude that MORCA's groundwater has a neutral-alkaline pH in both dry and rainy seasons, with an average temperature of 26.6 and 28.3 °C, respectively. Most of the MORCA's groundwater can be classified as light to highly saline and moderately to very hard. Ionic concentrations follow the sequence Cl- > Na+ > Mg2+ > Ca2+ > SO42- > HCO3- > CO32- and Na+ > Cl- > Mg2+ > SO42- > HCO3- > Ca2+ > CO32- for dry and rainy seasons, respectively. The Piper diagram revealed hydro chemical facies such as sodium, bicarbonate, and chloride during the dry season; during the rainy season, the facies were calcium, magne sium, sodium, bicarbonate, and chloride types. Furthermore, the Gibbs diagram indicated that the chemistry of MORCA's groundwater is deter mined by water evaporation and rock-weathering processes.

In terms of water quality, more than 50 % of the groundwater samples were unsuitable for human consumption during both climatic periods; however, two samples had good to excellent quality for con sumption. Most of MORCA's groundwater cannot be used for irrigation, since, according to the Richards (1954) diagram samples from most of the sites were classified as C3-S1, C3-S2, C4-S1, and C4-S2. In addi tion, the Wilcox diagram showed that almost 45% of the groundwater samples are not suitable for irrigation use.
